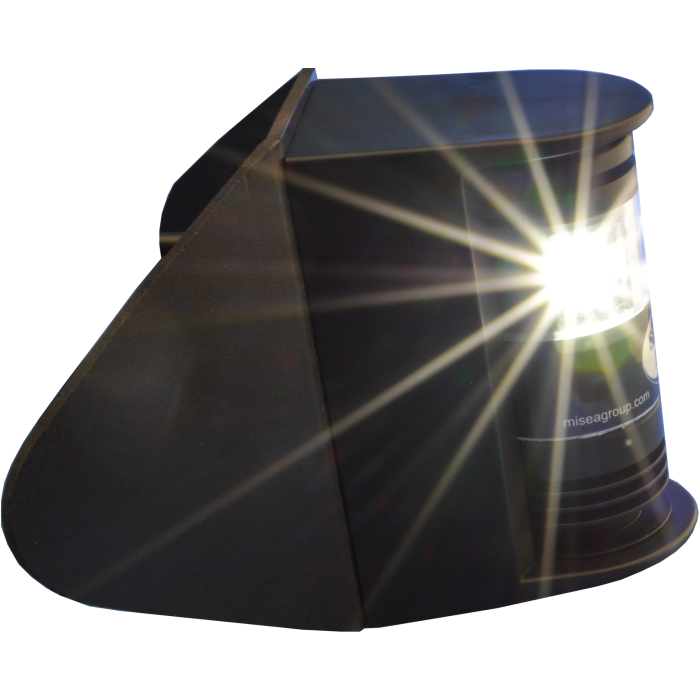

Signal Mate 3NM LED Masthead (Steaming) 225 degree White Mast Mount (BracketMMT) 3NMMH225MMT

The 3 nautical mile (NM) LED White 225 degree light (3NMMH225MMT) is certified USCG / ABYC A-16 & 72 COLREGS. The Masthead light is used for power, sailboats and commercial vessels up to 20 meters (65 feet) while being propelled by machinery. Life of the LEDs is 50,000 hours. By using the latest high brightness (HB) LED with constant current drivers, and good thermal management, assures the life of the LED. The light provides constant brightness over the full operating range of 10 to 30 volts DC. This insures the light will meet or exceed the visibility requirements as the battery voltage drops from use. The circuitry provides passive RF filtering to eliminate interference. The driver printed circuitry board (PCB) is potted to protect the circuitry. The light is constructed with Black hard coat anodized aluminum heat sink, LED holder, and top with polycarbonate lens. For mounting, a wrap around mast mount bracket made of black ASA plastic is included for an easy installation using two fasteners to attach the fixture to the mast. The light comes with 3 feet of 2 conductor 20 AWG UV jacketed wire. Durability: Waterproof / Vibration proof. Current Draw: 0.160 amps at 12VDC. Height 3.25 inches. Diameter 1.5 inches. Weight 6.4 oz.
