Signal Mate 3NM LED Masthead (Steaming) 225 degree White Bracket (BracketTERM) 3NMMH225

Special Price $239.98 Regular Price $287.98
Out of stock
SKU
JMS276921
Signal Mate 3NM LED Masthead (Steaming) 225 degree White Bracket (BracketTERM) 3NMMH225

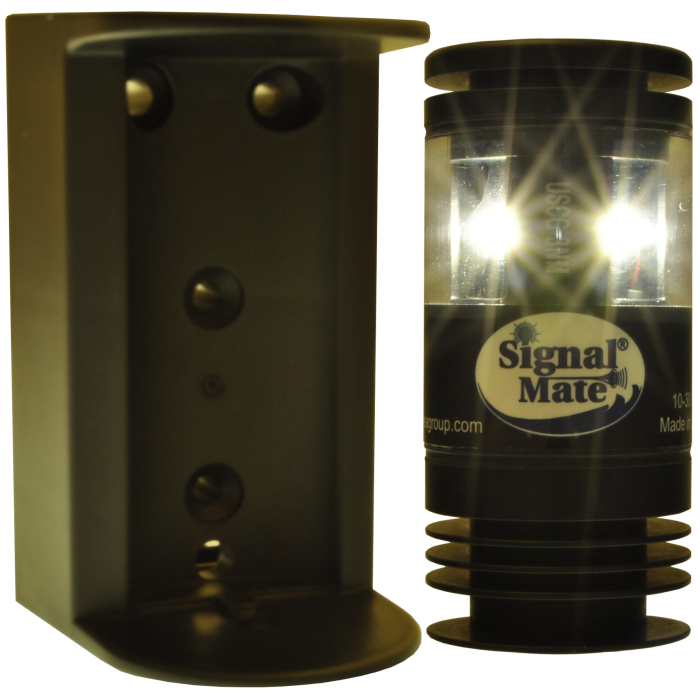

The 3 nautical mile (NM) LED White 225 degree light (3NMMH225) is certified USCG / ABYC A-16 & 72 COLREGS. The Masthead light is used for power, sailboats and commercial vessels up to 20 meters (65 feet) while being propelled by machinery. Life of the LEDs is 50,000 hours. By using the latest high brightness (HB) LED with constant current drivers, and good thermal management, assures the life of the LED. The light provides constant brightness over the full operating range of 10 to 30 volts DC. This insures the light will meet or exceed the visibility requirements as the battery voltage drops from use. The circuitry provides passive RF filtering to eliminate interference. The driver printed circuitry board (PCB) is potted to protect the circuitry. The light is constructed with Black hard coat anodized aluminum heat sink, LED holder, and top with polycarbonate lens. For mounting, there are four options. For direct mounting, use the 1/4 inch x 20 female threads on the bottom of the light. Included with the light is a mounting bracket (BRKTTERM) which allows for wire termination in the back of bracket. A stainless steel 360 degree bracket (BRKT360) can be used which is keyed to assure proper orientation with the vessels centerline when mounting. Also available to use with this light are 1 inch or .75 inch pole mounts (PADPT1, PADPT75) and a Rail Mount (RAILMT) for .75 to 1.25 inch rails. The light comes with 3 feet of 2 conductor 20 AWG UV jacketed wire. Durability: Waterproof / Vibration proof. Current Draw: 0.160 amps at 12VDC. Height 3.25 inches. Diameter 1.5 inches. Weight 6.4 oz.
More Information
UPC Code 858673005095
Manufacturer Part Number 3NMMH225
Manufacturer Signal Mate
