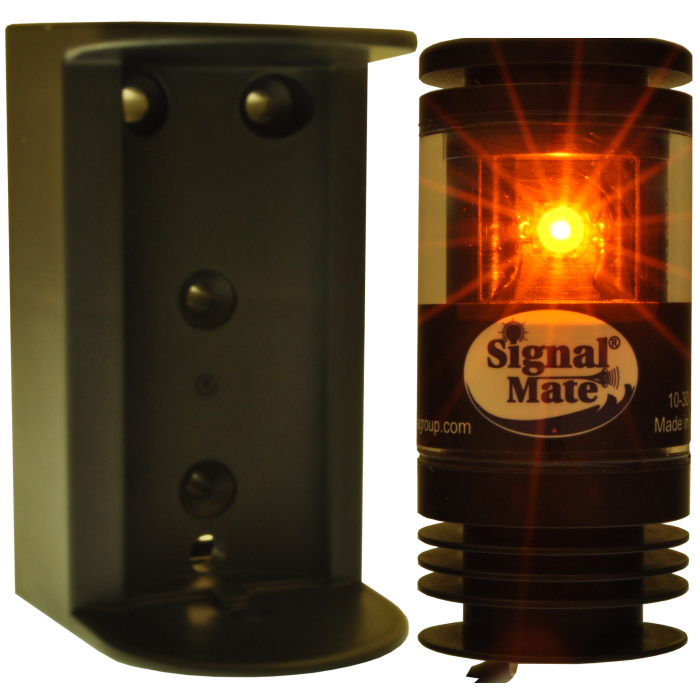

Signal Mate 2NM LED Towing 135 degree Yellow Bracket with Termination Area (BracketTERM) 2NMTOW

The 2 nautical mile (NM) LED Towing 112.5 degree Yellow light (2NMTOW) is certified USCG / ABYC A-16 & 72 COLREGS. This light is used for power and sailboats up to 50 meters (164 feet). Life of the LED is 50,000 hours. By using the latest high brightness (HB) LED with constant current drivers, and good thermal management, assures the life of the LED. The light provides constant brightness over the full operating range of 10 to 30 volts DC. This insures the light will meet or exceed the visibility requirements as the battery voltage drops from use. The circuitry provides passive RF filtering to eliminate interference. The driver printed circuitry board (PCB) is potted to protect the circuitry. The light is constructed with Black hard coat anodized aluminum heat sink, LED holder, and top with polycarbonate lens. For mounting, there are four options. For direct mounting, use the 1/4 inch x 20 female threads on the bottom of the light. Included with the light is a mounting bracket (BRKTTERM) which allows for wire termination in the back of bracket. A stainless steel 360 degree bracket (BRKT360) can be used which is keyed to assure proper orientation with the vessels centerline when mounting. Also available to use with this light are 1 inch or .75 inch pole mounts (PADPT1, PADPT75). The light comes with 3 feet of 2 conductor 20 AWG UV jacketed wire. Durability: Waterproof / Vibration proof. Current Draw: 0.100 amps at 12VDC. Height 3.25 inches. Diameter 1.5 inches. Weight 6.4 oz.
