Signal Mate 2NM LED Hovercraft Stainless Steel 360 degree Keyed Bracket (Bracket360) 2NMHOV
Special Price
$259.98
Regular Price
$263.00
Out of stock
SKU
JMS276932
Signal Mate 2NM LED Hovercraft Stainless Steel 360 degree Keyed Bracket (Bracket360) 2NMHOV

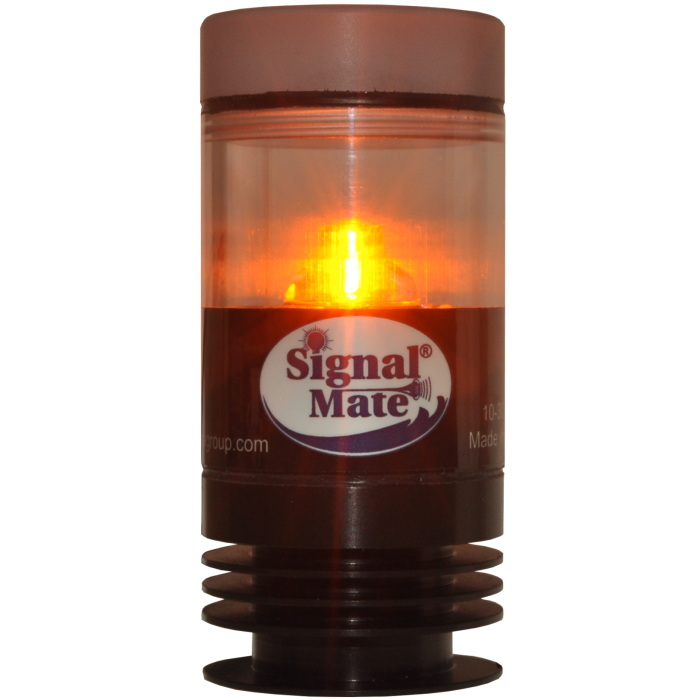

The 2 nautical mile (NM) LED Hover Craft 360 degree Yellow light (2NMHOV) is certified USCG / ABYC A-16 & 72 COLREGS. This light is used for air cushioned vessels (Hover Craft) while in the non displacement mode up to 50 meters (164 feet). The light flashes at 120 flashes per minute (fpm). The light features a secondary optics to increase the brightness while maintaining low current draw. Life of the LED is 50,000 hours. By using the latest high brightness (HB) LED with constant current drivers, and good thermal management, assures the life of the LED. The light provides constant brightness over the full operating range of 10 to 30 volts DC. This insures the light will meet or exceed the visibility requirements as the battery voltage drops from use. The circuitry provides passive RF filtering to eliminate interference. The driver printed circuitry board (PCB) is potted to protect the circuitry. The light is constructed with Black hard coat anodized aluminum heat sink with polycarbonate lens and top. For mounting, there are three options. For direct mounting, use the 1/4 inch x 20 female threads on the bottom of the light. Included with the light is a stainless steel 360 degree bracket (BRKT360) which is keyed to assure proper orientation with the vessels centerline when mounting. Also available to use with this light are 1 inch or .75 inch pole mounts (PADPT1, PADPT75). The light comes with 3 feet of 2 conductor 20 AWG UV jacketed wire. Durability: Waterproof / Vibration proof. Current Draw: 0.100 amps at 12VDC. Height 3.25 inches. Diameter 1.5 inches. Weight 5.2 oz.
UPC Code | 858673005187 |
---|---|
Manufacturer Part Number | 2NMHOV |
Manufacturer | Signal Mate |
