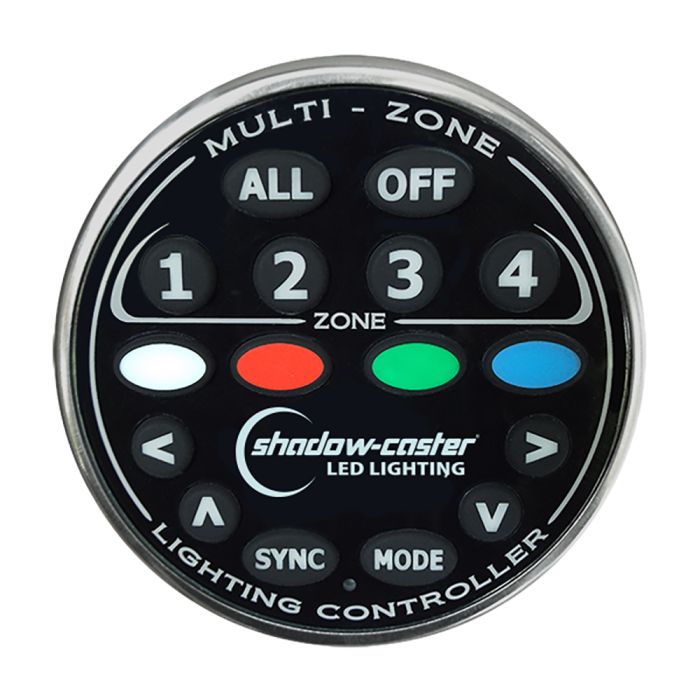

Shadow-Caster Multi-Zone Lighting Controller SMC-ZC

$449.00
Out of stock
SKU
JMS296933
Shadow-Caster Multi-Zone Lighting Controller
Multi-Zone Lighting Controller

Shadow-Caster's "Zone Controller" allows for individual or simultaneous control of up to four separate lighting zones. Co-developed with WetSounds, the SCM-ZC gives the user the ability to quickly change the color and brightness of their lights, and allows for the synchronization of lights with music. Shadow-Net technology allows for the control of any RGB color-changing lights. It also allows integration with multi-functional displays and other audio visual equipment. The zone controller is perfect for total control of all of the lighting on a boat, RV or other automobiles.

The Multi-Zone Lighting Controller, is the first of its kind on the market. Co-Developed with Wet Sounds® the "Zone Controller" is an LED lighting controller perfect for marine and terrestrial applications. It is fully waterproof and capable of controlling all RGB and Shadow-NET enabled lights. Shadow-NET is a proprietary protocol developed by Shadow-Caster Lighting to communicate lighting color information via an embedded CAN (Control Area Network) bus.
Shadow-Caster's "Zone Controller" allows for individual or simultaneous control of up to four separate lighting zones. Quickly change color and brightness or synchronize the lights to music. Shadow-Net technology allows for control of lighting through integration into multi-functional displays and other audio visual equipment. The zone controller is perfect for total control of all of the lighting on a boat or yacht.
Small, sleek, and user friendly, the Zone Controller installs in a standard 3 inch gauge opening and includes a wiring harness and mounting hardware. The interface is backlit and uses tactile response switches. The Zone controller is the only waterproof, multi-functional RGB LED controller on the market today.

Specifications:
  • Size: 3.625" outside diameter X 0.5" Height (92 x 13mm)
  • UV stabilized polycarbonate cover with stainless steel bezel
  • Machined aluminum rear housing
  • IP65 controller and connector with 18" harness
  • Supports up to 500W of LED lights
  • Operating voltage: 10 - 30 volts DC
  • 16 Illuminated silicone buttons
  • 4 Independent zones
  • Shadow-Net Enabled
  • 1-Year Warranty
  • Made in the USA

More Information
UPC Code 855726005538
Manufacturer Part Number SMC-ZC
Manufacturer Shadow-Caster LED Lighting
