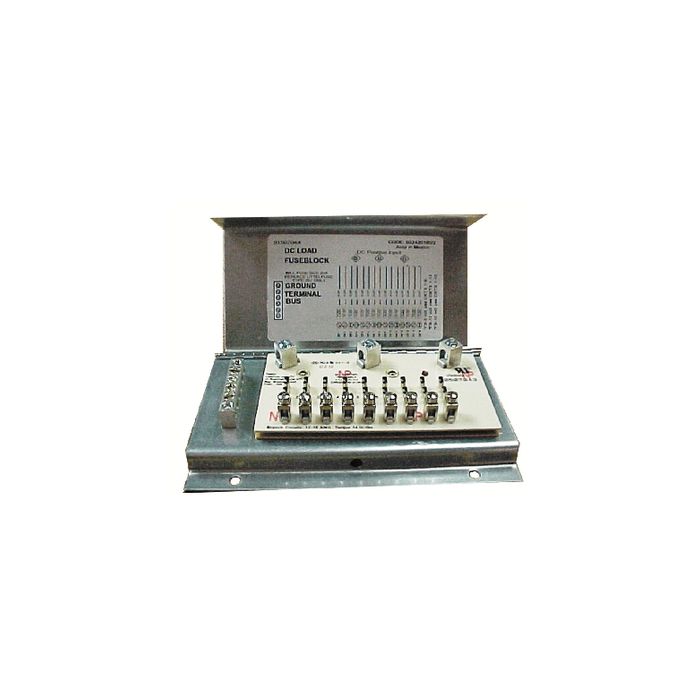

Parallax Fuse Block9 Positionw/En. PPS FB9

Parallax Fuse Block9 Positionw/En. PPS FB9

FB models have 3 large non-fused terminals rated for 2-14AWG wires. These terminals are common to one another and are the supply side for the branch circuits. Branch circuits are rated for 20ADC maximum and the branch circuit terminals are rated for 12-16AWG. Circuit panels can be used with any deckmount style converter or system without a built-in DC load distribution panel. Comes with galvanized metal chassis and hinged cover. Terminal bar for 12V negative connections.

SKU: PPS FB9 267-FB9
Manufacturer: PARALLAX POWER SUPPLY
Category: Electrical/Fuse Blocks
