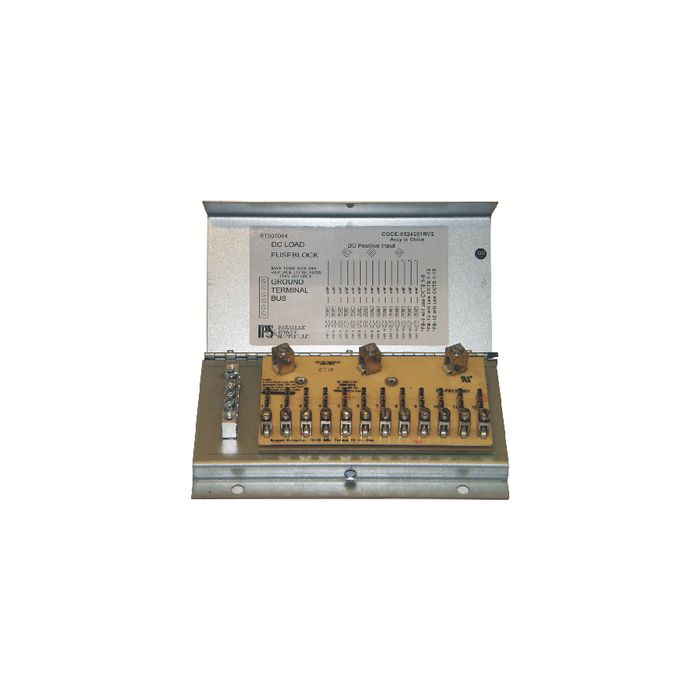

Parallax Encl. Fuse Block 12 Position PPS FB12

Parallax Encl. Fuse Block 12 Position PPS FB12

FB models have 3 large non-fused terminals rated for 2-14AWG wires. These terminals are common to one another and are the supply side for the branch circuits. Branch circuits are rated for 20ADC maximum and the branch circuit terminals are rated for 12-16AWG. Circuit panels can be used with any deckmount style converter or system without a built-in DC load distribution panel. Comes with galvanized metal chassis and hinged cover. Terminal bar for 12V negative connections.


Description: 12 DC load circuits

SKU: PPS FB12
Manufacturer Part Number: FB12
Product Category: RV Electrical>Power Supplies
