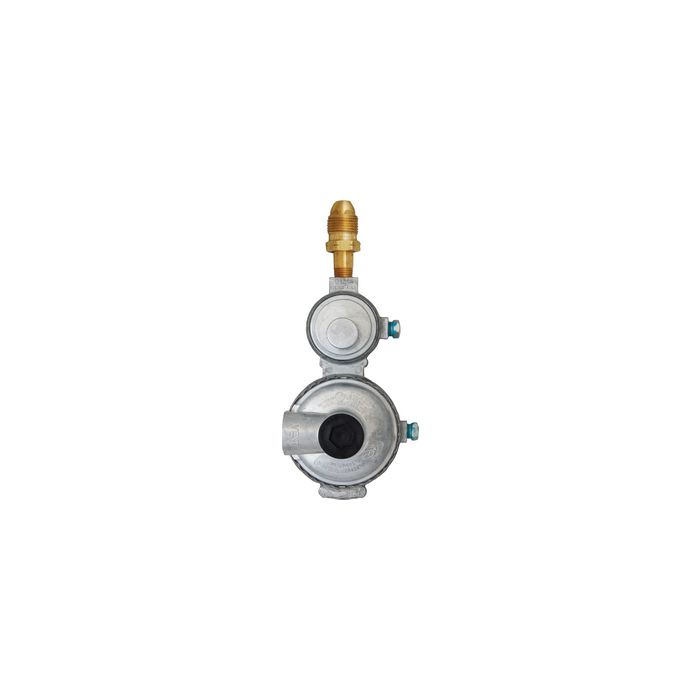

Marshall Excelsior 2Stage Reg/9;00 Vent/Exflo Pol MEC MEGR295

Marshall Excelsior 2Stage Reg/9;00 Vent/Exflo Pol MEC MEGR295

Approved for use in nearly all portable applications and outdoor cooking appliances utilizing low pressure. They feature all zinc body construction, high and low 1/8" NPT pressure tap ports, an integral second stage drip lip vent and optional standard or 90° vent locations. High Capacity Compact Integral Two Stage Regulator is ideally suited for high demand RV, outdoor appliances, cabins, seasonal homes, gas fire places, water heaters, ranges or other moderate to low demand domestic home installations.(Green bonnet identifies high capacity model). Meets UL, RVIA and NFPA requirements.

• Type: Two Stage


• Max. Inlet Pressure: 250 PSI


• Outlet Connection: 3/8" FNPT


• Exterior Finish: Raw Zinc / Powder Coated


• Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal


• Diaphragm Type: Internal Relief - Spring Loaded


• Bonnet/ Body Material: Die Cast Zinc


• Listings: UL LISTED / UL 144


• Mounting Holes: 3-1/2" On Center


• Pressure Taps: 1/8" FNPT Plugged

Description: Standard
Inlet: HN Excess Flow POL
Vent: 90° Vent
Pkg.: Bulk

SKU: MEC MEGR295
Manufacturer Part Number: MEGR-295
Product Category: RV Appliances>LPG Regulators
