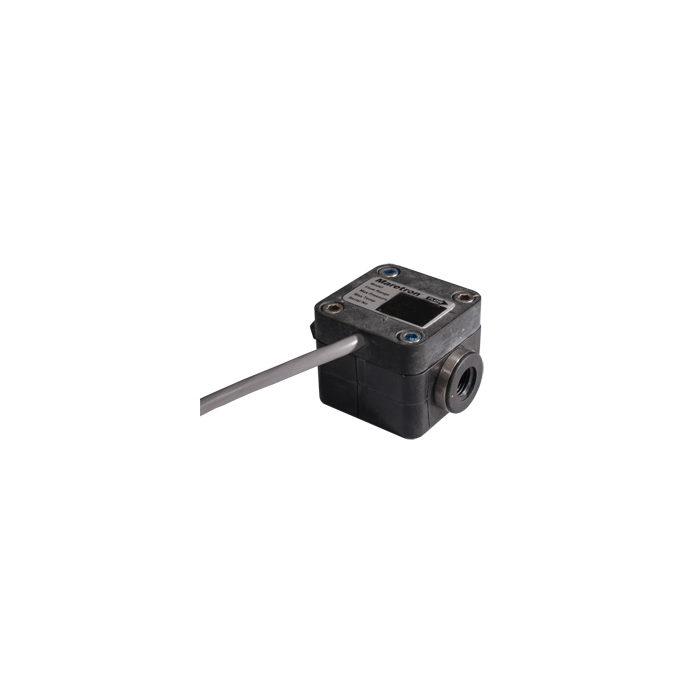

Maretron Fuel Flow Sensor 10-100 LPM/2.6-26.4 GPM M16AR
Special Price
$995.00
Regular Price
$1,277.00
Out of stock
SKU
JMS129015
Maretron Fuel Flow Sensor 10-100 LPM/2.6-26.4 GPM
Fuel Flow Sensor 10-100 LPM/2.6-26.4 GPM
When fluid passes through the sensor, the rotors turn. Magnets which are located in the rotors will pass across sensors in the sensor circuit board. Pulses from these sensors are transmitted to the FFM100 which performs flow rate calculations based on the received pulses.
Specifications:
When fluid passes through the sensor, the rotors turn. Magnets which are located in the rotors will pass across sensors in the sensor circuit board. Pulses from these sensors are transmitted to the FFM100 which performs flow rate calculations based on the received pulses.
Specifications:
- Construction: Housing Material Aluminum
- Port Size: 1" NPT Female
- Maximum Viscosity: 1000 cPs
- Strainer Size: 60 Mesh (If not already installed after fuel filter)
| UPC Code | 873804003566 |
|---|---|
| Manufacturer Part Number | M16AR |
| Manufacturer | Maretron |
