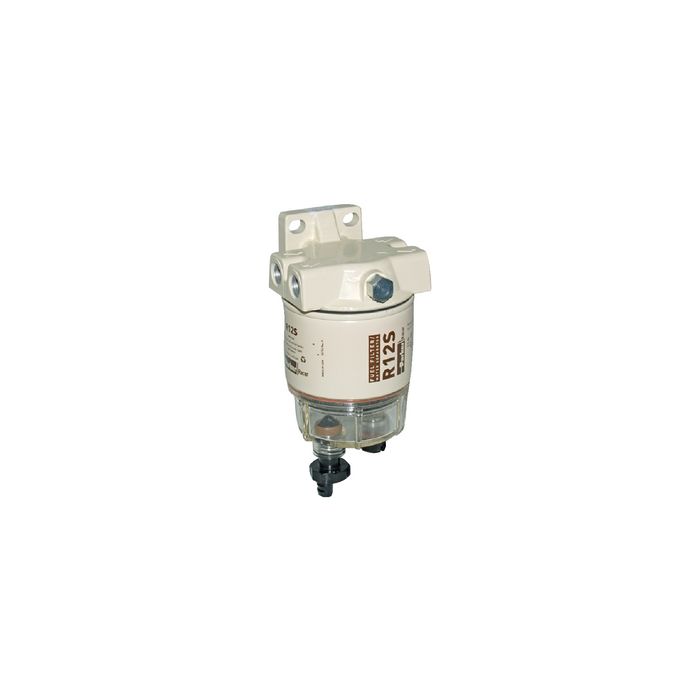

Racor 15 Gph Diesel Spin On-2 Micron RAC-120AS

Racor Filter Assy-Diesel 15 Gph 2M RAC-120AS

The Racor 100 Series features a variety of compact sizes to fit the most cramped engine compartments. All units feature 1/4"-18 NPTF inlet and outlet fuel ports and a unitized mounting bracket. All 100 Series assemblies feature spin-on, high-capacity, Aquabloc® II replaceable filter elements which stop water, remove solid contamination (model 110A is a cartridge element and is available with a 10 micron element only). Filtration needs should be based on application, fuel quality, operating climates, and maintenance schedules. All units feature spin-on contaminant collection bowls. Clear bowls will not discolor from alcohol, additives, or UV light and have a leak-proof, positive seal drain for easy servicing (except the 110A). Water and contamination levels can be seen easily at a glance.
110A: Designed for fuel-injected gasoline engines with high working pressures and also can be used on diesel engines. A metal housing is standard. Typical applications include smaller diesel and gasoline engines used in generator sets, pressure washers, and other equipment. Max pressure 100 psi. Rated 15 GPH for diesel, 35 GPH for gasoline.
120AS: Offers reliable protection for smaller diesel and gasoline engines used in generator sets, pressure washers, and other equipment. Max pressure 70 psi.

GPH: 15
Micron: 10
Ports: 1/4"-18 NPTF
Bowl: Clear
Size: 3.2" D x 3.2" W x 6-1/2" H

SKU: RAC-120AS
Category: Fuel > Racor Diesel Fuel Filters
