Comrod AR42M Receiving Whip - 13.5' 21330

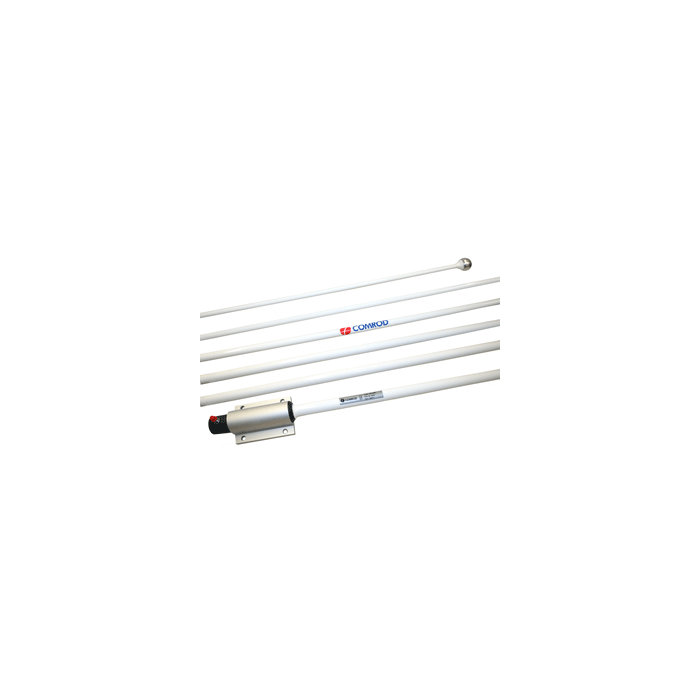

AR42M Receiving Whip - 13.5'

AR42 is an efficient fibreglass receiving antenna for the marine coastal and HF communication frequencies. This antenna can be supplied with protection against static discharges that can harm the receiver.

Specifications:

• Design: Self supporting fiberglass whip with aluminum armature for mounting

• Height: 13.5' (4.1m)

• Weight: 2.7kg, including U-bolts

• Number of sections: 1

• Wind rating: 55m/s - 125mph

• Deflection due to wind load: 1.9m (6.2ft) at tip ball at 55m/s wind load

• Finish: Polyurethane lacquer white

• Temperature range: -55°C, +55°C; -67°F, +131°F

• Waterproof Rating: IP67

Mounting:
Easily mounted to the bulkhead by means of 4 boltholes in the aluminum bracket, or to a mast or tube with U-bolts. The U-bolts in stainless steel are included.

Suitable cable:
RG8, RG213 or similiar

To increase effective height, or in case of emergency, the bracket is supplied with a terminal for external wire antenna.

The antenna is equivalent to AR40.
