BLUE SEA 3117 120V AC ELCI 30AMP DUAL PANEL ENCLOSURE 3117

$728.12
In stock
SKU
JMS116021
BLUE SEA 3117 120V AC ELCI 30AMP DUAL PANEL ENCLOSURE 3117 is available to buy in increments of 1

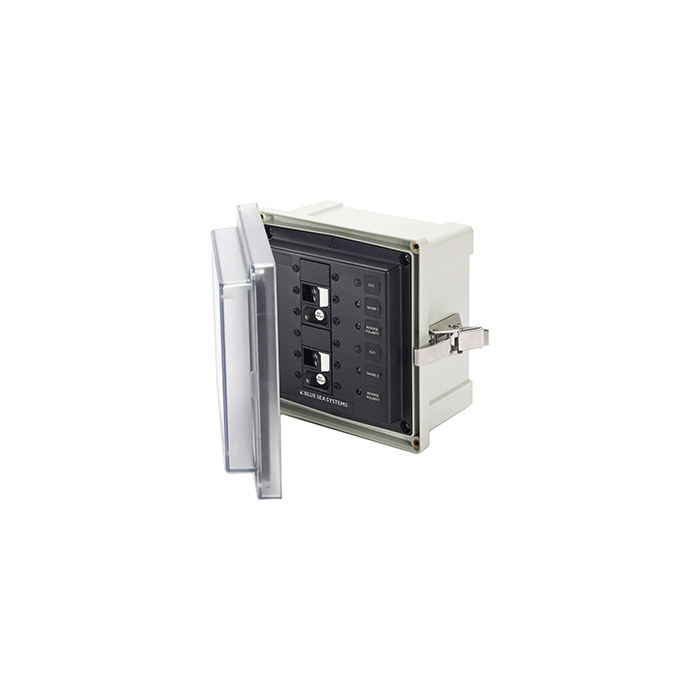

Blue Sea 3117 - SMS Panel Enclosure w/2 ELCI (30A) - 120V AC

3117 - SMS Panel Enclosure with 2 ELCI (30A) - 120V AC

The 3117 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices.  Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

  • Blank apertures for custom breaker loading
  • Glass filled polycarbonate base
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
  • Includes waterproof glands
  • LED lights for back lighting and ON indication

Technical Specifications:

  • Circuit Breaker Type - 2 x ELCI (30A) Main 120V
  • Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
  • Dimensions  (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
  • LEDs Installed - 2 x Red (Reverse Polarity - 120V AC and 2 x Green ON (120V AC)

In the Box:

  • 3117 Enclosure
  • Glands x 6
  • Labels
  • Mounting hardware
  • Instruction manual

*Sold as an Individual

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

More Information
UPC Code 632085031176
Manufacturer Part Number 3117
Manufacturer Blue Sea
