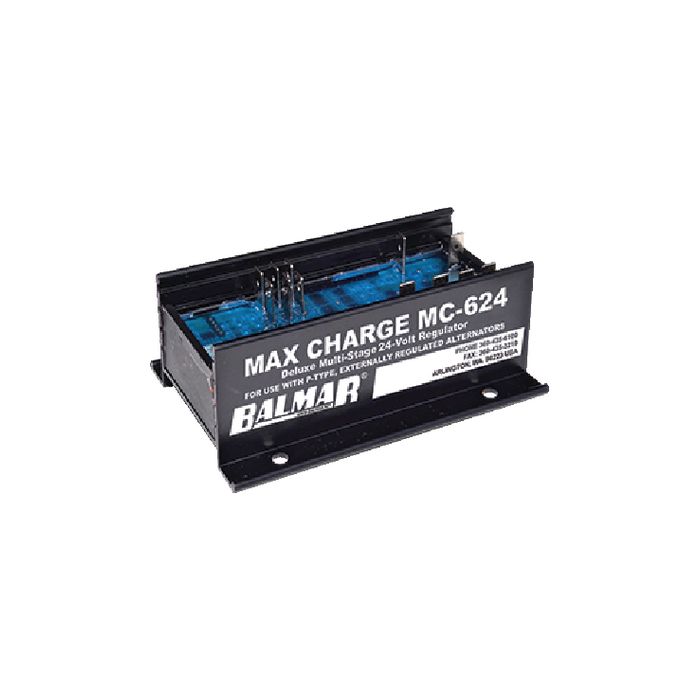

Reg Multi-Stage 24V w/Harness BLM-MC624H
$540.00
In stock
SKU
JMS114699
Reg Multi-Stage 24V w/Harness BLM-MC624H is available to buy in increments of 1
Reg Multi-Stage 24V W/Harness BLM-MC624H
Max Charge Voltage Regulators
Max Charge regulators feature custom selectable preset programs for five battery technologies Ñ standard flooded, deep-cycle flooded, gel, AGM, spiral wound Ñ plus a default factory safe program and a separate program for vessels with voltage sensitive halogen systems. Advanced programming modes add greater user control. Easy-to-read LED numeric display. Dash and aux. lamp functions. Stator/tach terminals. Programming tool included. MC-612-H and MC-624-H include 54" wiring harness. For use on P-type alternators. Temperature sensing requires optional temperature sensors. One year limited warranty.
Series Specifications
Selectable Program Presets UFP (Factory Default), FDC (Flooded Deep Cycle), Gel, AGM, OPS (Optima), Standard Flooded, Halogen
Charging Stages Delay/Soft Ramp, Bulk, Calculated Bulk, Absorption, Calculated Absorption, Float, Calculated Float
Dimensions 4.8" L x 3-1/4" W x 1-1/2" T; (Includes power, ign., stator, field, ground [2], sense wire pigtail [12-V only])
Temperature Sensing Batteries (2), Alternator (1);
REQUIRES OPTIONAL TEMPERATURE SENSOR CABLES
Harness Yes
Fuse 10A
Volts DC 24
SKU: BLM-MC624H
Alternate SKU: 684-MC624H
Category: Engine>Voltage Regulators
Max Charge regulators feature custom selectable preset programs for five battery technologies Ñ standard flooded, deep-cycle flooded, gel, AGM, spiral wound Ñ plus a default factory safe program and a separate program for vessels with voltage sensitive halogen systems. Advanced programming modes add greater user control. Easy-to-read LED numeric display. Dash and aux. lamp functions. Stator/tach terminals. Programming tool included. MC-612-H and MC-624-H include 54" wiring harness. For use on P-type alternators. Temperature sensing requires optional temperature sensors. One year limited warranty.
Series Specifications
Selectable Program Presets UFP (Factory Default), FDC (Flooded Deep Cycle), Gel, AGM, OPS (Optima), Standard Flooded, Halogen
Charging Stages Delay/Soft Ramp, Bulk, Calculated Bulk, Absorption, Calculated Absorption, Float, Calculated Float
Dimensions 4.8" L x 3-1/4" W x 1-1/2" T; (Includes power, ign., stator, field, ground [2], sense wire pigtail [12-V only])
Temperature Sensing Batteries (2), Alternator (1);
REQUIRES OPTIONAL TEMPERATURE SENSOR CABLES
Harness Yes
Fuse 10A
Volts DC 24
SKU: BLM-MC624H
Alternate SKU: 684-MC624H
Category: Engine>Voltage Regulators
UPC Code | 676205100076 |
---|---|
Manufacturer Part Number | MC-624-H |
Manufacturer | Balmar |
