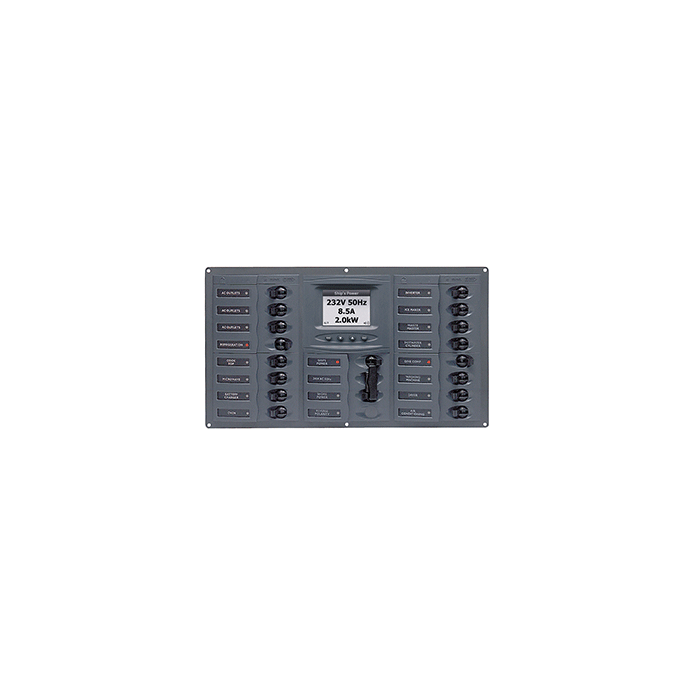

BEP AC CIRCUIT BREAKER PANEL WITH DIGITAL METERS 16SP 2DP 900-AC4-ACSM

$2,051.49
Out of stock
SKU
JMS115431
BEP AC Circuit Breaker Panel w/Digital Meters, 16SP 2DP AC230V ACSM Stainless Steel Horizontal
AC Circuit Breaker Panel with Digital Meters, 16SP 2DP AC230V ACSM Stainless Steel Horizontal

Features:
  • Supplied with transducer
  • Reverse polarity indicator
  • Double pole mains input CBs with side lockout
  • Digital meter shows volts, amps and frequency
  • LED wired to indicate live panel with mains breaker either on or off
  • AC source selector ensures no cross over between AC inputs (ship or
  • shore power)
Specifications:
  • Total Positions: 16 Loads + 2 Inputs
  • Circuit Breakers: 1x 5A, 5x 10A, 7x 15A, 2x 20A, 1x 25A + 1x 20A, 1x 50A
  • Nominal Voltage: 230V AC
  • Maximum Amperage: 50A
  • Dimensions: 7.9" X 13.9" X 2.5"
  • Neg Bus: IS-6MM-2

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

More Information
UPC Code 843687004295
Manufacturer Part Number 900-AC4-ACSM
Manufacturer BEP Marine
