ACR Universal Remote Control Kit 9283.3

Universal Remote Control Kit

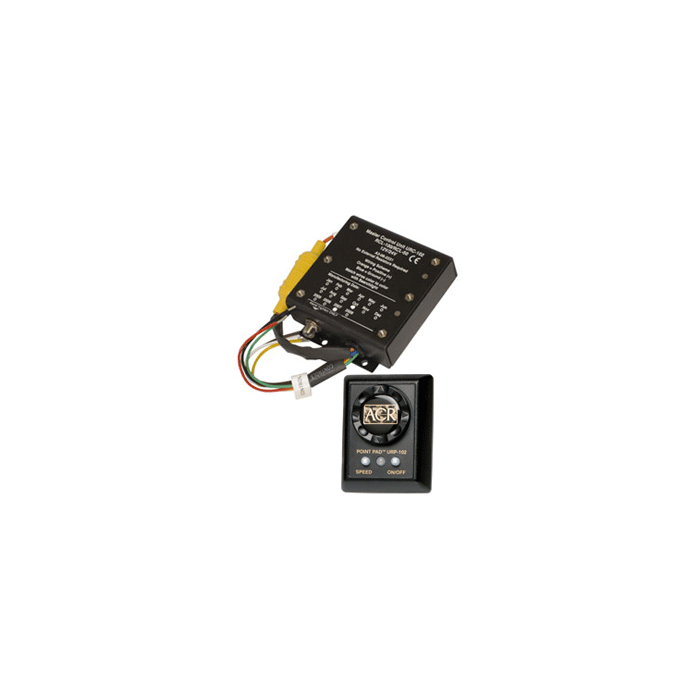

Universal Remote Control (URC-102)
and a Point Pad™ (URP-102)

• Consists of universal master control unit and a Point Pad; installed via single coaxial cable

• URC-102 provides optimum voltage to ensure brightest performance and long lamp life, regardless of boat system voltage fluctuations

• URC-102 XRCiZ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional (can be disabled)

• On-Off and light rotation speed control

• Point Pad allows finger tip control; surface/flush mount options included

• Has the capacity to perform up to six different duties; ideal for searchlights, winches and other electrical devices

• Easily retrofitted to most servo-motor drives

• Compatible with 12 or 24VDC operation

Master Size:

2.8 x 3.0 x 1.6 in (7.1 x 7.6 x 4.0 cm)

Remote Size:

5 x 4.5 x 5 in (12.7 x 11.43 x 12.7 cm)

Master Weight:

.65 lbs (300g)

Remote Weight:

10.5 oz (300 g)
