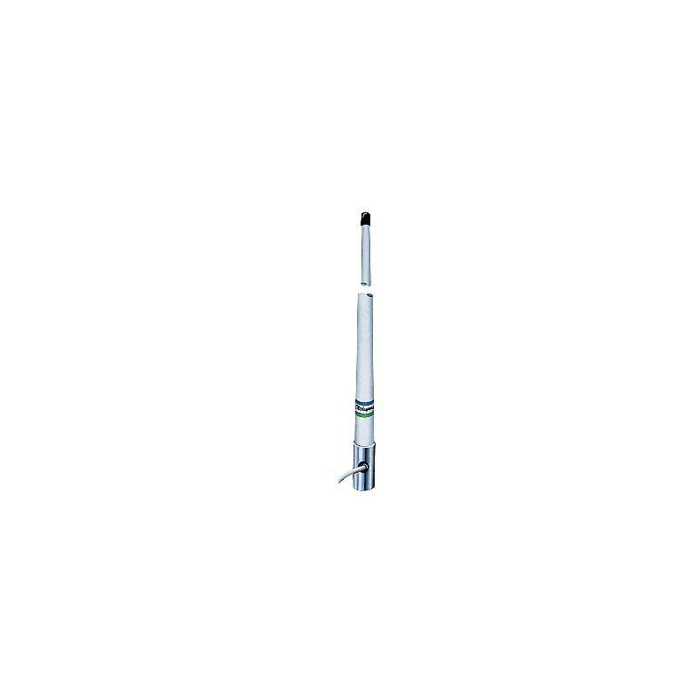

Shakespeare 5206-C 8' VHF Antenna 5206-C

Shakespeare Style 5206-C VHF Marine
8" LENGTH 6dB

END-FED WITH MATCHING STUB

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.

• Quality copper cable elements for good range and efficiency

• Chrome-plated brass ferrule with standard 1"-14 thread

• Includes 15" RG-58 cable and a PL-259 connector

• Suggested mount: Shakespeare Style 4187 Ratchet Mount or use a Style 410-R Mounting Kit and a Style 4008 Extension Mast to form a 16" antenna system

• Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas

• One section

• Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	3 MHz
SWR:	1.5:1 @156.8 MHz
Impedance:	(Ohms): 50
Gain:	6 dB
Max Input (Watts):	50
DC Ground:	NO - the antenna will read "open circuit" when checked with an ohm meter or continuity tester.
Termination:	RG-58
Height (feet):	8
Polarization:	Vertical
Radiation pattern:	Omni-directional
