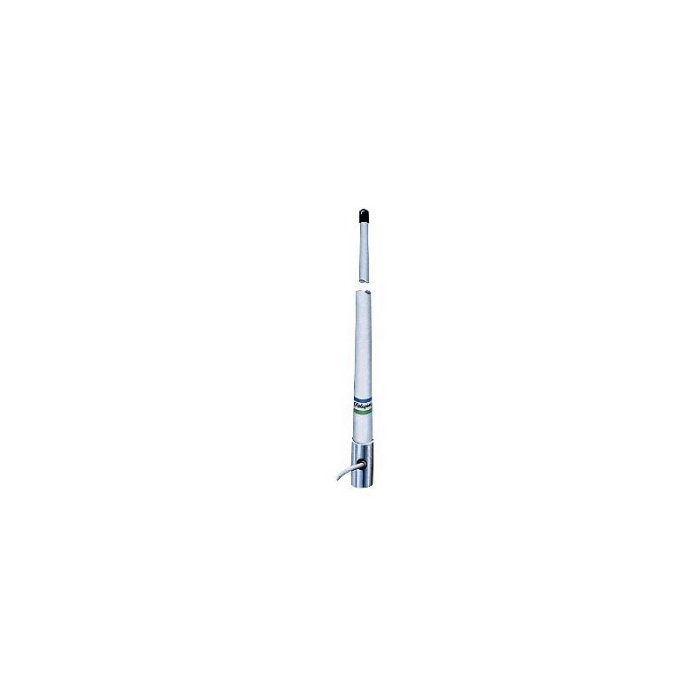

Shakespeare 5202 8' VHF Antenna 5202
$219.95
Out of stock
SKU
JMS175798
SHAKESPEARE VHF 8FT 5202 6DB
Shakespeare Style 5202 VHF 6dB Gain
8" LENGTH
COLLINEAR PHASED 5/8-WAVE
A favorite of maritime professionals, this rugged antenna boasts an extra heavy-duty radome and powerful internal elements for reliable service day after day under the most demanding conditions.
Technical Specifications:
8" LENGTH
COLLINEAR PHASED 5/8-WAVE
A favorite of maritime professionals, this rugged antenna boasts an extra heavy-duty radome and powerful internal elements for reliable service day after day under the most demanding conditions.
- Brass and copper elements for maximum range and efficiency
- Chrome-plated brass ferrule with standard 1"-14 thread
- Includes 20" RG-58 cable and a PL-259 connector
- Suggested mount: Style 4187 Ratchet Mount, or use a 410-R Mounting Kit plus a Style 4008 Extension Mast (each sold separately) to form a 16" antenna system
- Twin to: 5205 and 5207 CB antennas
- One section
- 6dB gain
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
Frequency: | VHF Marine band |
Bandwidth: | (within 2.0:1 SWR): 3 MHz |
SWR: | 1.5:1 at 156.8 MHz |
Impedance: | (ohms): 50 |
Gain: | 6 dB |
Max Input (Watts): | 50 |
DC Ground: | YES |
Termination: | 20" RG-58 cable |
Height (feet): | 8 |
Polarization: | Vertical |
Radiation pattern: | Omni - directional |
UPC Code | 719441100131 |
---|---|
Manufacturer Part Number | 5202 |
Manufacturer | Shakespeare |
