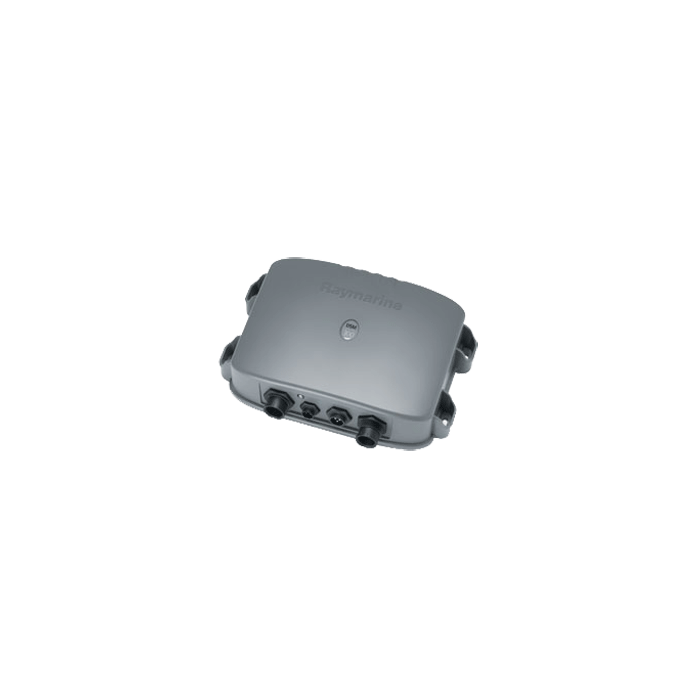

Raymarine DSM300G Network Sounder Module f/C & E & G E63069G

Raymarine DSM300G Network Sounder Module f/C & E & G E63069G

SKU: 32707

Email to a Friend

Be the first to review this product

Availability: In stock

Regular Price: $769.99

Special Price: $699.99

Qty:

Add to Wishlist

Quick Overview

RAYMARINE DSM300G NETWORK SOUNDER MODULE F/ C & E & G

Frequently bought together

Raymarine Adjustable In-Hull Transducer E66008

Raymarine Transom Mount Speed and Temp Sensor E66019

Raymarine e7 7" Multifunction Display - Internal GPS - Inland Charts T70003

Price for all selected :

$2,962.75

Details

"Black Box" Digital Sounder Module with HD Digital Technology.
HD Digital Sounder Module

Digital Sounder Module adds HD Digital technology to Raymarine
E-Series and C-Series multifunction displays
600 or 1000 Watt operation depending on choice of transducer
Dual frequency 50/200 kHz
Patented Raymarine HD Digital sounder technology

Integration Capabilities

E-Series SeaTalk hs network integration (optional SeaTalk
hs crossover coupler or SeaTalk hs Network Switch is
required)
C-Series integration
hsb2 networking compatible with "Plus" series radars,
chartplotters and fishfinders

Echo Sounder Features:

Dual frequency operation (200/50 kHz)
1000 or 600 watt available output power depending choice of transducer
HD Digital Auto Adaptive Gain control (no adjustment required)
Patent Pending Digitally Adaptive Transmitter Receiver with infinite
receiver bandwidth settings and digital filter
A-Scope (Real-Time Display): Split second real time representation of
fish and bottom features passing through the beam of your transducer right
now, the history of your A-Scope is represented in the standard sounder
image scrolling across your screen.
Zoom Display: Auto or manual zoom magnification of any part of the 200
or 50 kHz fishfinder screen image, (X 2, X4 or X6 magnification).
Bottom Lock: The bottom lock feature, shows the bottom as a straight
line, in order to help you detect fish close to the bottom and remove wave
action from the fishfinder image.
White Line: The White line feature helps distinguish between fish and
the bottom, when fish are swimming close to the bottom.

Manufacturer Name

Raymarine
