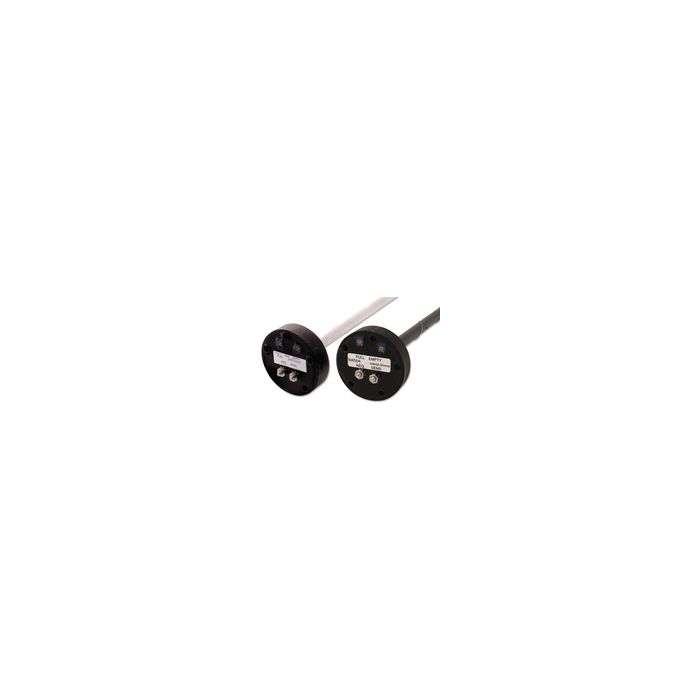

Livorsi Sender Fuel Level 0-12 Tank LIV-GSFLC12

Fuel Level Sender

Provide an accurate, continuous readout of fuel or water levels even in a moving boat. Consisting of a single in-tank probe and an amplifier, it's innovative technology renders the traditional float arm assembly obsolete. Constructed of concentric tubing (a small brass or aluminum tube inside a larger aluminum tube) that's placed vertically in the tank. Acting as a capacitor, the inner tube reads how much air is in the tube and changes in value as the fuel level rises or falls. The amplifier converts these values to a signal suitable to drive a standard meter or other display. The capacitor can even detect water in the fuel tank. The sender is easily installed in the standard float arm assembly mounting plate, an SAE standard 5 bolt pattern. The water sensor probe is constructed of a PVC tube with a stainless steel wire along the outside and an insulated wire through it's center. The readings on your meter change as the water level rises and falls on the sensor wire. The biggest advantage to this new line of fuel & water level senders is the absence of moving parts. The unit is impervious to mechanical failure and it greatly reduces needle bounce on the gauge. The probe comes in 12" increments and can be cut into any length down to the next lower increment.
No moving parts, nothing to break or wear out
Prevents pointer bounce
Can be cut and calibrated in the field
Detect water in fuel
Other ohm resistances available
Requires 12 volts
Standard SAE 5 bolt pattern
Adjustable Size Up to 12"

SKU: LIV-GSFLC12
Alternate SKU: 503-PFLS12
Category: Engine>Sending Units
