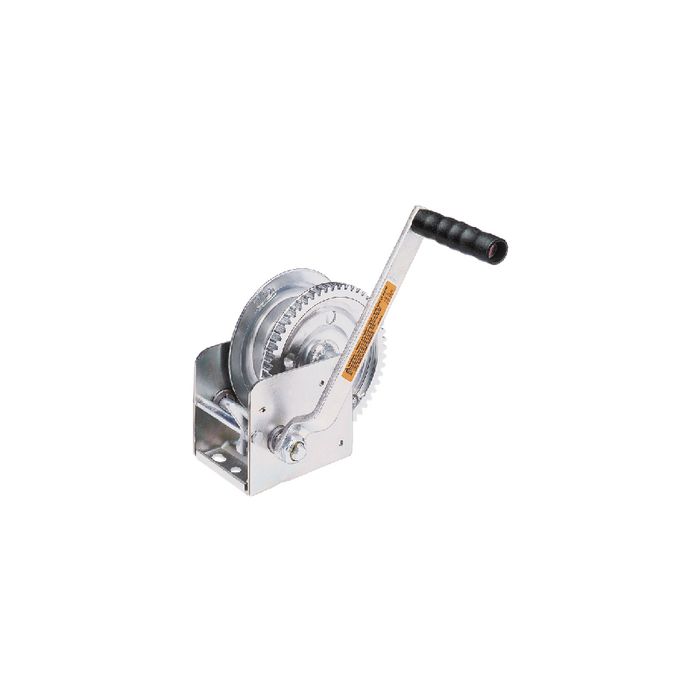

Dutton Lainson Hand Ratchet Winch DL1802A Plated DUT 14627

Dutton Lainson Hand Ratchet Winch DL1802A Plated DUT 14627

Features load matched gear ratios (for easier cranking), reinforced arc-welded reels, high carbon steel gears throughout, permanently lubricated bearings, base plates (fit BIA Standard mounting holes) and zinc plated finish. 2-Speed models allow for both high and low speed cranking from one side and quick attach handle. Cable clamp standard on 2-speed heavy duty models. Steel handles have molded grips. Models 400 through 2500 have holes in the reel for installation of web strap. Built for multipurpose hauling and lifting operations. They are not to be used as hoists for lifting, supporting, or transporting people, or for loads over areas where people could be present. 5 Year Warranty. Cable w/strap not included except where noted.


Max Load: 1800 lbs.
Max Advantage: 73
Gear Ratio: 5:4:1
Handle: 9-1/2"
Hub: 1-1/8"

SKU: DUT 14627
Manufacturer Part Number: 14627
Product Category: Trailering>Hand Winches & Parts
