Comrod AV60BI Marine VHF Antenna - 8' 21000

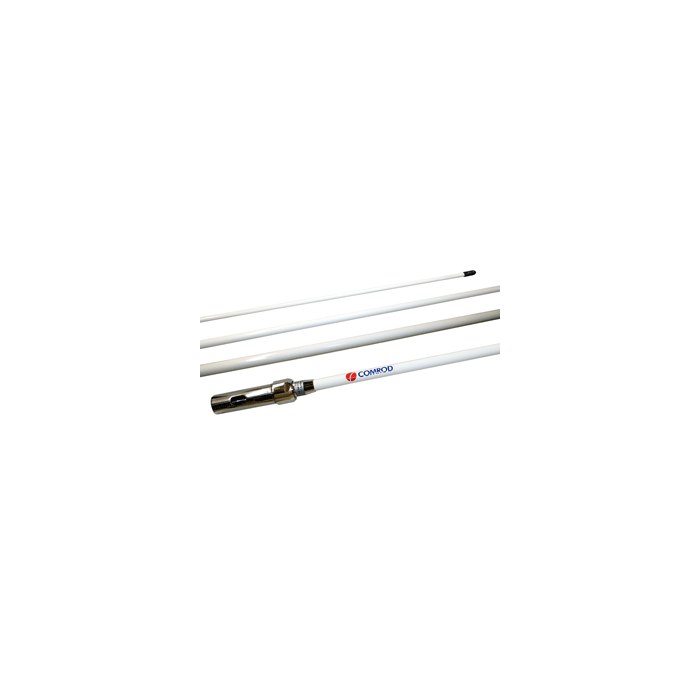

AV60BI Marine VHF Antenna - 8'

The AV60BI8 is a high quality gain antenna designed for the maritime VHF radio telephone service. It is a high quality antenna with a durable construction and a beautiful finish for installation on all kinds of vessels. It comes with integrated BNC coaxial contact.

Specifications:

• Design: Collinear 5/8 l wave phased brass elements

• Radiating element completely enclosed in polyurethane foam within a fiberglass tube

• 1 X 14 Standard mount thread

• Height: 8' (2,45 m.)

• Weight: 1.1 kg

• Wind rating: 55 m/s = 125 mph

• Finish: Polyurethane lacquer, white

• Temperature range: -55°C, +71°C; -67°F, +160°F

• Gain: 6dB

• Nominal impedance: 50 ohm

• Polarisation: Vertical

• Connector: BNC female

• DC-grounded: Yes

Mounting:
The AV60BI8 is fitted with UNS1"x14 female ferrules. Can be used with all standard mounting accessories. Integrated BNC female coaxial connector.
All BI versions come with a tool to mount the BNC male coaxial connector inside the stainless steel ferrule.

*4-way bracket and coaxial cable not included
