Blue Sea 3002 HD-Series Battery Switch Selector 3002

Blue Sea 20233

Availability: Out of stock

Regular Price: $106.86

Special Price: $75.80

Quick Overview

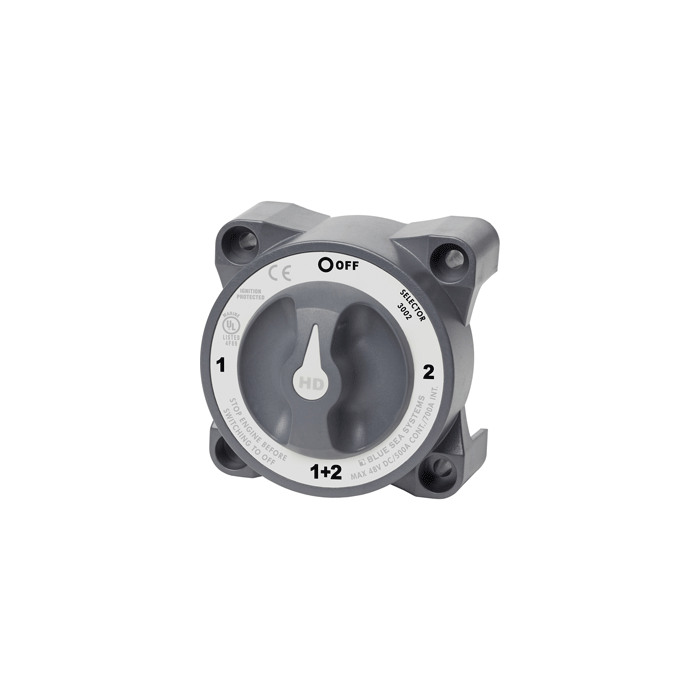

HD-Series Battery Switch Selector

PN:  3002
500 Amperes Continuous Rating for large diesel engines
  • 500 Ampere Continuous Rating
  • Accepts 4/0 battery cables
  • Ignition protected - safe for installation aboard gasoline powered boats
  • .870" (22.01mm) stud length to accept 4 or more cable terminals
  • 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
  • Tactile textures indicate knob position by feel only
  • Case design allows surface or rear panel mounting
  • Fits all Perko and Guest low amperage battery switch hole patterns

Inrush Rating: 0.25 sec (10 repeats)1,750 Amperes DC
Cranking Rating: 9.75 sec (10 repeats)1,000 Amperes DC
Intermittent Rating: (UL 1107)700 Amperes DC
Continuous Rating: (UL 1107)500 Amperes DC
Voltage Rating48 Volts DC Maximum
Case MaterialReinforced Polycarbonate
Terminal Hole Size1/2" (M12)
Torque220 in-lbs.

Additional Information

UPC Code632085030025
Manufacturer Part Number3002
ManufacturerBlue Sea
