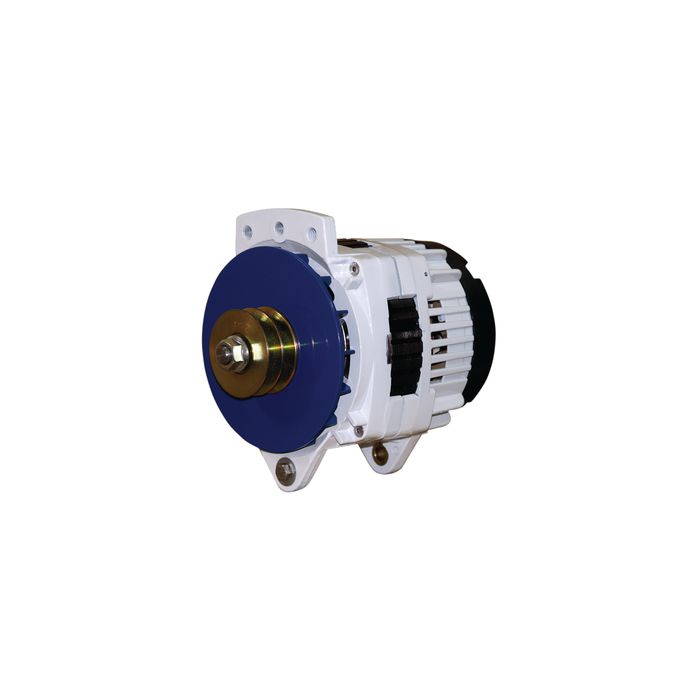

Alternator 220A 24V 4" Mount BLM-9824220IGBL

98 Series Alternator

Fits Detroit, Cummins, Caterpillar, John Deere, Off-engine mount. Built to deliver performance in league with auxiliary gensets, extra-large frame. 98-Series 12-volt and 24-volt, extended-duty alternators produce up to 5kW. Dual fan design (one internal, one external) maximizes cooling. Brushless construction eliminates key wear points, increases ignition protection and delivers greater field efficiency. Brawny J-180 mount. Precision cast aluminum case, powdercoated for added protection. Alternators meet USCG Title 33, and international CE, SAE 8846 and ISO J-1171 ignition protection safety requirements. One year limited warranty. 98 Series are typically used on larger diesel engines requiring a J-180 style mounting foot. These alternators can also be used with our 5276 off engine mounting bracket.
Ignition Protection Standards CE, USGC T33, ISO, SAE. Minimum Belt Width.50" (2). Mount J-180 4" Saddle

Series Specifications
Excitation Brushless permanent magnet
Cooling Bi-Directional external fan/Internal fan
Outputs AC (tach), positive output, isolated ground
Regulation External field connection
Maximum RPM 6,500
Tensioning Triple position crown
Amps 220
Brushless
Excitation Yes
Volts DC 24

SKU: BLM-9824220IGBL
Alternate SKU: 684-9824220IGBL
Category: Engine>Alternators
