Barton Marine 02631 - Size 2 - Fiddle - Swivel, Becket & Cam Cleat Block 2631

$79.97
Out of stock
SKU
JMS201578

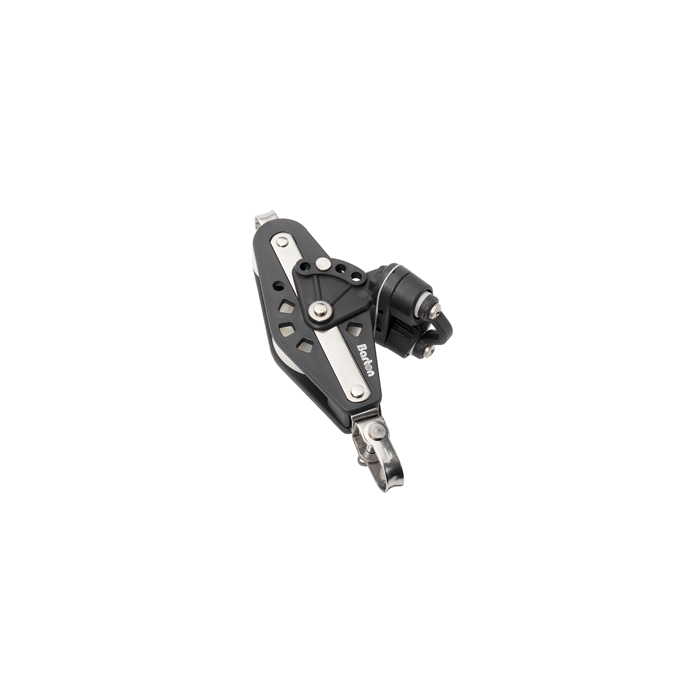

Barton Marine 02631 - Size 2 - Fiddle - Swivel, Becket & Cam Cleat Block
Series 2 35mm Block - Fiddle - Swivel + Becket + Cam Block

Swivel
Fully swivelling head with removable shackle.
Becket
A clevis forming part of one end of a sheave
Cam cleat blocks
Fitted with Kevlar "K" cams (unless otherwise stated). Cam arms are fully adjustable by moving the locking clevis pin to achieve the correct cleating angle. Used in conjunction with the relevant top block, this range of blocks is particularly useful for mainsheet, vang tackles or downhauls on dinghies, dayboats or light cruising yachts

A strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger boats.
A comprehensive range of multiple sheave options, together with fiddles and cam cleat blocks, allow powerful, lightweight tackles to be achieved

Plain bearing blocks
Barton plain bearing blocks have a precision moulded Acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Length:155mm(6.10")
Sheave Size:
Single: 35mm x 12mm (1-⅜" x 1532")
Fiddle: 30/45mm x 12mm (1-316" /1-¾ x 1532")
SWL: 370kg (815lbs)
Max Rope Diameter: 8mm (516")
Break Load:740kg (1630lbs)



Category: Boat Outfitting | Sailing
More Information
UPC Code 5035088026319
Manufacturer Part Number 02 631
Manufacturer Barton Marine
