Home > Marine Electronics and Navigation > FISHFINDERS > Furuno LS6100 Echosounder

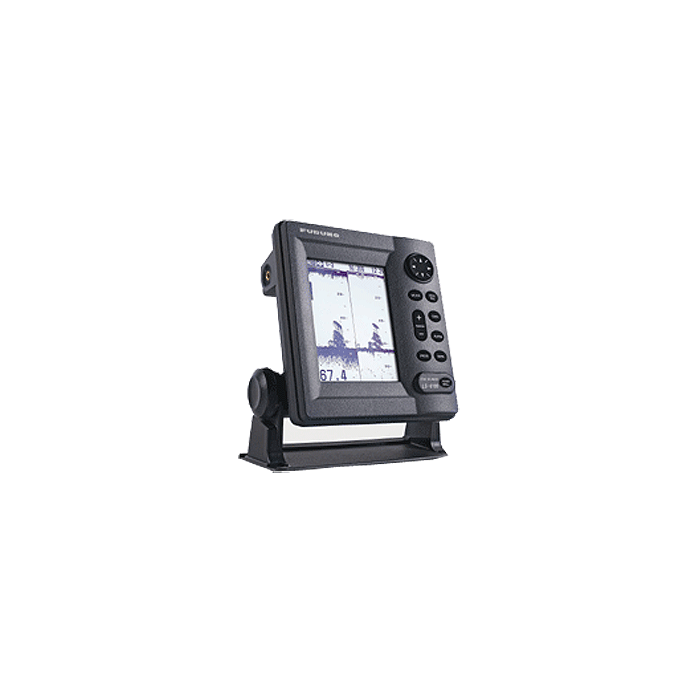

Furuno's LS6100 fish finder is compact, waterproof and best of all powerful. It packs 300 Watts (2,400 p-p) of output power for unparalleled fish finding performance.

The LS6100 offers dual frequency capabilities - both 50 and 200kHz - for a two-way view of the world below your boat. This unit is compact enough to fit practically anywhere. Yet it features a 6" silver brite LCD display that offers a remarkably detailed picture of fish and bottom structure.

In addition to it's fish finding capability, the LS6100 has the unique ability to be a handy navigational organizer when connected to appropriate sensors. It can display a variety of information including: water temperature, wind direction/speed, Lat/Lon, XTE and distance run in a graphical or text format. With the BBGPS or BBWGPS receiver connected, the "Mini-Navigator" feature is capable of storing up to 12 waypoints with programmable names. Any waypoint can be selected as a destination.

Standard Features

• Waterproof, 6 Inch, Silver Brite Monochrome LCD Display

• Targets presented in up to 4 gray tones

• Picture resolution of 240(H) x 320(V) pixels

• 300 Watt RMS (2400 P-P) output power

• Seven depth scales, from 0-10 to 0-640 feet

• Depth offset to 1,500 feet, maximum depth scale of 3,000 feet

• Automatic or Manual Depth Range and Gain Adjustment

• A-Scope for rapid fish detection and species identification

• White Line Mode for enhanced bottom fish detection

• Audible and Visual, Temp, Speed, Fish or Bottom Alarm

• TLL output sends position, temp and depth to Furuno TLL capable plotters

• Multiple Display Modes

  1. Normal, Low Frequency/High Frequency

  2. Dual Frequency

  3. Bottom Lock Expansion

  4. Marker Zoom

  5. Bottom Zoom

  6. A-Scope

  7. Two Customizable Navigation Data Display - Displaying digital and analog graphical info, including: Wind Speed/Direction, Ship's Speed, Steering Screens and more


• Speed and Temperature input via optional sensor or NMEA data

• Direct connection of BBGPS or BBWGPS antennas for GPS or WAAS fix

• Mini Navigator allows storage of up to 12 waypoints, with capability to navigate back to these points using the LS6100's XTE/Range and Bearing calculation and steering screens

• Two NMEA0183 ports - one bi-directional and one "listen-only"

Shipping Information

• 5Lbs., 1 Carton Less Transducer

Power Requirements

• 12 VDC, 10 Watts
